oil free for
pet insustry

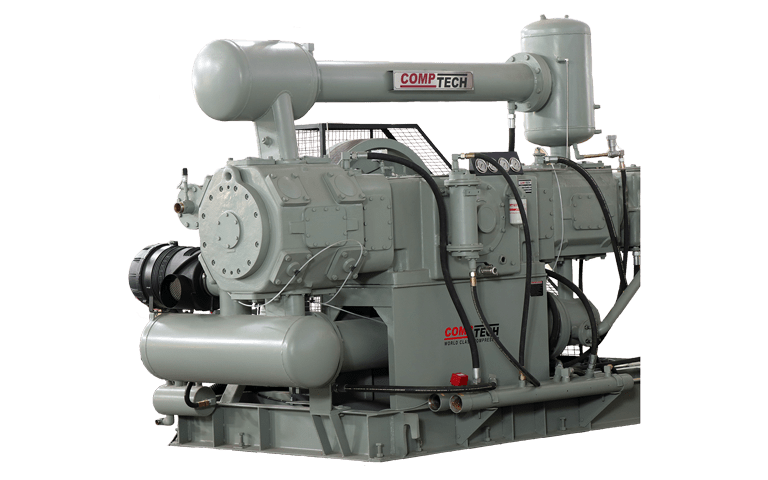

Our Oil Free Compressor have low rpm & rugged cast iron design ideal for heavy duty continuous 24 x 7 operating year after year. Forged Crank Shaft & Connecting Rod, Precision Main & Crank Pin Bearings with force feed lubrication have very high load bearing capacity & hardly needs replacements. Two throw balance-opposed frame, designed to minimize unbalanced forces.
Slient Design Intake Filter
CTBO series inlet filters are amongst the largest on the market for comparable flow-rates. What’s more, they are super-silenced and firmly mounted and their dust filtration level is up to an impressive 3 microns.
Low Vibration
CTBO Series Compressors have the least vibrations, which leads to no foundation and cheap installation. Also, due to low Vibrations, the compressors get a longer life.
Premium Efficiency Motor
Best in Class High Efficiency IE3 Motor for
better performance and energy savings
High Efficiency Valves
Premium quality Valve assembly designed to last long which requires Annual one time maintenance only, without losing its efficiency.
Piston & Piston Rings
Highly self lubricated PTFE Piston ring, rider ring and Piston and rod packing rings, specially developed to deliver highly efficient Guaranteed 100% Oil Free Air.
Smart Control PLC
The Smart Control Advanced microprocessor based system with a color screen display all the necessary details, Such as live pressure, temperature, current measurement, maintenance indications and all the safety settings with faults history.
Technical Specifications
| COMPRESSOR MODEL | MOTOR | STAGE | FAD @ 35 kg/cm² | MAX. WORKING PRESSURE | DIMENSION (L X WX H) | WEIGHT | |
|---|---|---|---|---|---|---|---|
| kw | HP | CFM | INCHES | Kg. | |||
| CTBO 42/40 | 30 | 40 | 3 | 110 | 42 | 119 X 50 X 88 | 2500 |
| CTBO 42/50 | 37 | 50 | 3 | 135 | 42 | 119 X 50 X 88 | 2500 |
| CTBO 42/60 | 45 | 60 | 3 | 160 | 42 | 119 X 67 X 79 | 3500 |
| CTBO 42/75 | 55 | 75 | 3 | 195 | 42 | 119 X 67 X 79 | 3500 |
| CTBO 42/100 | 75 | 100 | 3 | 270 | 42 | 160 X 74 X 105 | 6000 |
| CTBO 42/120 | 90 | 120 | 3 | 324 | 42 | 160 X 74 X 105 | 6500 |
| CTBO 42/150 | 110 | 150 | 3 | 405 | 42 | 161 X 74 X 105 | 6500 |
| CTBO 42/180 | 132 | 180 | 3 | 486 | 42 | 162 X 74 X 105 | 7000 |
| CTBO 42/215 | 160 | 215 | 3 | 560 | 42 | 163 X 74 X 105 | 7000 |
